Spatial patterns can unfold if defectors diffuse (migrate) faster than cooperators, DDDC. Increased migration rates of defectors are motivated by the fact that defectors deplete common resources (or are unable to sustain them) and this causes them to move elsewhere. Conversely, migration rates of cooperators should be lower in order to enable them to take advantage of the locally sustained common resource. Consequently, the dominant effect of spatial dynamics is not cooperators outrunning defectors, but instead, the defectors' relentless search of productive patches. Slow migration facilitates aggregation of cooperators, whereas fast migration supports defectors to readily locate cooperator patches, but it also impedes their ability to exploit one particular patch.

Brave New World of Dynamical Pattern Formation

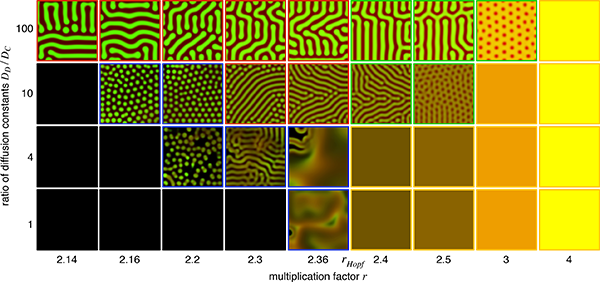

Figure 1: Brave New World of Dynamical Pattern Formation.

Typical patterns for different efficiency of the public good r and ratios of the diffusion coefficients. For r > rHopf the co-existence equilibrium is stable and unstable otherwise, i.e. the population would invariably disappear in the absence of spatial extension. The spatial dynamics can be categorized into different kinds of pattern formation processes: homogenous distributions (yellow frame), diffusion induced instability - Turing patterns (green), diffusion induced co-existence (red), spatio-temporal chaos (blue) and extinction (black).

If cooperators and defectors can co-exist in a stable equilibrium in the absence of space, this does not necessarily imply that the corresponding spatially homogenous state is stable as well. In the vicinity of the equilibrium, the spatial dynamics may take on the form of an activator-inhibitor system. Any deviation from the equilibrium is amplified by cooperators (activators) but suppressed by defectors (inhibitors). If defectors migrate (diffuse) faster than cooperators, these antagonistic forces may give rise to the formation of complex patterns (Turing instability). Any small local disturbance propagates through the system and induces stable heterogeneous strategy distributions. Local disturbances may give rise to rearrangements of the patterns but then quickly relax into another qualitatively indistinguishable distribution of cooperators and defectors.

Conversely, if the co-existence equilibrium is unstable, then spatial extension and migration often prevents extinction and stabilizes co-existence of cooperators and defectors either in static spots and stripes similar to Turing patterns or in chaotic dynamics of ever changing patterns. In general, homogeneous populations near the co-existence equilibrium exhibit periodic density oscillations of increasing amplitude that eventually result in extinction. However, any small local disturbance can propagate through space and trigger stationary, heterogeneous strategy distributions. The pattern formation is again driven by the opposing forces of cooperators (activators) and defectors (inhibitors). However, the activator-inhibitor system develops in the vicinity of an unstable fixed point, which could be termed 'diffusion induced co-existence' in contrast to the classical 'diffusion induced instability' of Turing patterns. Also note that while Turing patterns rely on substantial differences in the diffusion constants of activators and inhibitors, this does not apply to diffusion induced co-existence, where dynamic patterns emerge even for DD = DC.

Individuals consuming common resources, such as in Hardin's Tragedy of the commons, or producing common resources may alter and shape their environment in an enduring manner. This is particularly evident in microbial systems involving extracellular products such as in antibiotic resistance, biofilms or swarming and represent crucial determinants of microbial ecology. Spatial ecological public goods model concurrent spontaneous habitat diversification and species co-existence and hence suggest a mechanism to promote biodiversity.

This tutorial complements scientific articles co-authored with Joe Yuichiro Wakano and Martin Nowak and provides interactive Java applets to visualize and explore the systems' dynamic for parameter settings of your choice.

Dynamical scenarios

The rich dynamics of Ecological Public Goods in spatial settings can be explored by interactive simulations or visualized through movies of high accuracy simulations. Clicking on the images loads interactive real-time VirtualLabs simulations that illustrate the characteristics of the corresponding dynamical regime. Because the simulations require significant computational power, high resolution movies are provided as an alternative (requires Quicktime 7 or higher - movies are H.264 encoded). The densities of cooperator and defectors across space are indicated by the brightness of the green and red color components, respectively. Thus, regions of co-existence appear yellow and black regions are vacant. The initial configuration is a disk of homogeneous cooperator and defector densities centered in an empty plane (no-flux boundaries).

Legend

Evolution of cooperator and defector distributions in spatial ecological public goods games.

Cooperator density:Low       High
Defector density:Low       High
Population density:Low       High
Payoff code:Low       High

Spatial Chaos

Ecological Public Goods Games in spatial settings can exhibit chaotic dynamics and produce fascinating ever changing patterns. This movie illustrates the onset of chaos when starting from a symmetrical initial configuration. The deterministic dynamics should, in principle, preserve the symmetry but instead the symmetry is maintained only for some time and then breaks down due to limitations of the numerical integration. The exponential amplification of arbitrarily small disturbances is the hallmark chaotic systems. In the absence of spatial dimensions the population would be unable to persist.

High resolution movie of spatial chaos (high accuracy integration, 4.1MB).

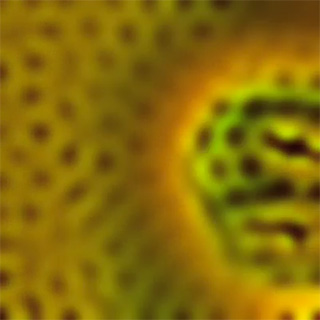

Intermittent Activity

Between the regimes of chaotic dynamics and static patterns an interesting region of intermittent activity occurs: The formation of quasi-static patterns alternates with rapid changes leading to global rearrangement and redistribution of cooperators and defectors. This movie illustrates the successive periods of stasis with intermittent bursts of activity. At first the bursts are synchronized across space but this breaks down over time generating states where large parts are largely static but get regularly stirred up by a wave of change.

High resolution movie of intermittent activity (high accuracy integration, 4.1MB).

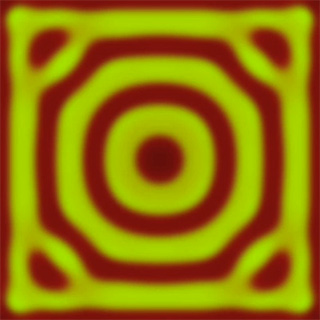

Diffusion induced instability (Turing patterns)

In the absence of space, cooperators and defectors can co-exist in a stable equilibrium Q. In spatial settings, the corresponding homogeneous strategy distribution is often unstable. Diffusion (or migration) generates an activator-inhibitor system that leads to spontaneous pattern formation also known as Turing patterns. Any deviation from Q is amplified by cooperators (activators) but suppressed by defectors (inhibitors). These antagonistic forces give rise to the formation of complex patterns. Any small local disturbance propagates through the system and induces stable heterogeneous strategy distributions. Further local disturbances may give rise to rearrangements of the patterns but then quickly relax into another qualitatively indistinguishable distribution of cooperators and defectors. In the movie, the inhomogeneity of the initial configuration triggers the formation of Turing patterns.

High resolution movie of diffusion induced instability - Turing patterns (high accuracy integration, 0.5MB).

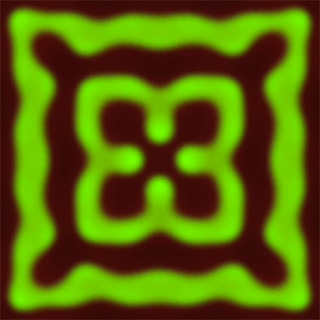

Diffusion induced co-existence

In the absence of space, the co-existence equilibrium Q is unstable such that cooperator and defector frequencies exhibit oscillations with increasing amplitudes until eventually the population goes extinct. In spatial settings with diffusion, cooperators and defectors again form an activator-inhibitor system but this time emerging spatial patterns are responsible for the survival of the population and permit stable co-existence of cooperators and defectors. This movie illustrates the emergence of spatial patterns through diffusion induced co-existence. The setup is the same as for the Turing patterns above, only the yield of the public good is lower.

High resolution movie of diffusion induced co-existence (high accuracy integration, 0.5MB).

Virtual lab

The applet below illustrates the different components. Along the bottom there are several buttons to control the execution and the speed of the simulations. Of particular importance are the Param button and the data views pop-up list on top. The former opens a panel that allows to set and change various parameters concerning the game as well as the population structure, while the latter displays the simulation data in different ways.

Cooperator density:Low       High
Defector density:Low       High
Population density:Low       High
Payoff code:Low       High
Java applet on ecology in public goods games. Sorry, but you are missing the fun part!
Controls
ParamsPop up panel to set various parameters.
ViewsPop up list of different data presentations.
ResetReset simulation
RunStart/resume simulation
NextNext generation
PauseInterrupt simulation
SliderIdle time between updates. On the right your CPU clock determines the update speed while on the left updates are made roughly once per second.
MouseMouse clicks on the graphics panels start, resume or stop the simulations.
Data views
Structure - Strategy Snapshot of the spatial arrangement of strategies.
Mean frequency Time evolution of the strategy frequencies.
Simplex S3 Frequencies plotted in the simplex S3. Mouse clicks set the initial frequencies of strategies or stops the simulations.
Phase Plane 2D Frequencies plotted in the phase plane spanned by the population density (x + y = 1 - z) and the relative frequency of cooperators (f = x / (x + y)). Mouse clicks set the initial frequencies of strategies, stop the simulations or switch to backward integration.
Structure - Fitness Snapshot of the spatial distribution of payoffs.
Mean Fitness Time evolution of average population payoff bounded by the minimum and maximum individual payoff.
Histogram - Fitness Snapshot of payoff distribution in population.

Game parameters, PDE parameters

The list below describes only the parameters related to the public goods game and the population dynamics. Follow the link for a complete list and descriptions of all other parameters e.g. referring to update mechanisms of players and the population.

Interest:
multiplication factor r of public good.
Cost:
cost of cooperation c (investment into common pool).
Lone cooperator's payoff:
payoff for a cooperator if no one else joins the public goods interaction.
Lone defector's payoff:
payoff for a defector if no one else joins the public goods interaction.
Base birthrate:
baseline reproductive rate of all individuals. The effective birthrate is affected by the individual's performance in the public goods game and additionally depends on the availability of empty space.
Deathrate:
constant death rate of all individuals.
Init Coop, init defect, init empty:
initial densities of cooperators, defectors and empty space. If they do not add up to 100%, the values will be scaled accordingly.
